🧱 How to Prepare an ICF Window Opening with Blue Seal Waterproofing: A Step-by-Step Guide

Why Proper ICF Window Prep Matters

When you’re building with Insulated Concrete Forms (ICF), your openings for windows and doors are critical points that need special attention. A common failure point in ICF builds is water infiltration around window bucks — especially on the sill. That’s why using liquid-applied waterproofing, like Blue Seal, is essential for a durable, energy-efficient, and moisture-protected ICF foundation.

Tools and Materials You’ll Need

Blue Seal Liquid-Applied Waterproofing

Buy Blue Seal here → (Home Depot)

Paint roller or brush

Caulking gun with compatible sealant (if required)

Utility knife

Masking tape (optional)

ICF-compatible window bucks (like vinyl or wood)

🛠 Step-by-Step: Sealing the Bottom of an ICF Window Opening

Step 1: Clean and Prep the Surface

Before you apply anything, make sure the ICF foam surface is dry, clean, and free of dust or debris. Use a stiff brush or compressed air if needed.

Step 2: Inspect for Gaps or Damage

Check the foam around the opening — especially the bottom edge of the sill — for any cracks, holes, or imperfections. If needed, fill them with spray foam or an ICF-compatible sealant and let it cure.

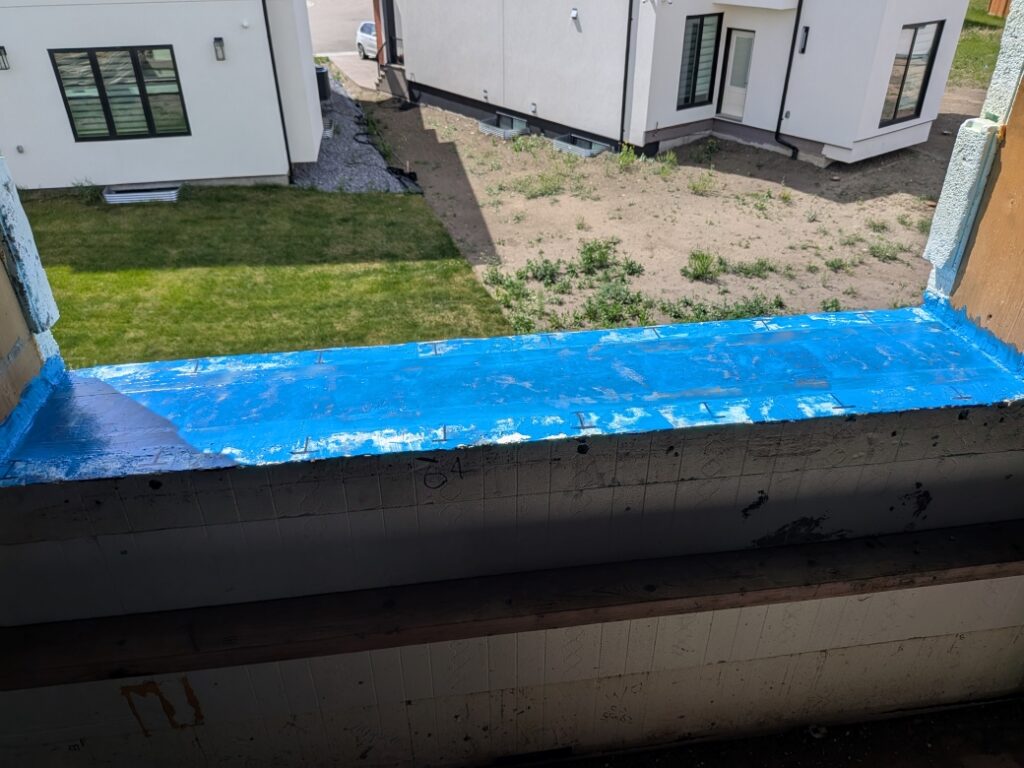

Step 3: Apply the Blue Seal

Using a brush or roller, apply a thick, even coat of Blue Seal to:

The entire horizontal sill

A minimum of 6 inches up both vertical sides

Any seams or joints between buck and foam

The front edge of the buck (if exposed)

💡 Pro Tip: Apply a second coat after the first one becomes tacky to the touch for extra durability.

Step 4: Let It Cure

Blue Seal typically dries in 4–6 hours depending on temperature and humidity. Wait until the surface turns from dark blue to a rubbery light blue film.

Step 5: Confirm the Seal

Once cured, ensure there are no pinholes, bubbles, or thin areas. Apply touch-ups if needed.

🧰 Why Blue Seal Works for ICF Foundations

Blue Seal is flexible, adhesive, and designed for below-grade waterproofing—making it perfect for ICF applications. It creates a seamless barrier that protects your window sills from:

Wind-driven rain

Condensation buildup

Ground moisture intrusion

Long-term rot or mold under the window

✅ Final Thoughts

Proper prep of your ICF window openings ensures that your ICF foundation stays sealed, dry, and high-performing for decades. At YEG ICF, we specialize in helping homeowners and builders get the most out of their ICF investment, from foundation prep to window installation best practices.

—
